Technical Diagrams

This web page is designed for the more technical service person to fix problems with Cruzin Cooler products. This page may be considered by some to be far too advanced to work from.


Please refer to our Service FAQ for more direct solutions if you find this documentation highly complex.
Click images to enlarge.

Wiring Diagrams

A wiring diagram with electronic control module

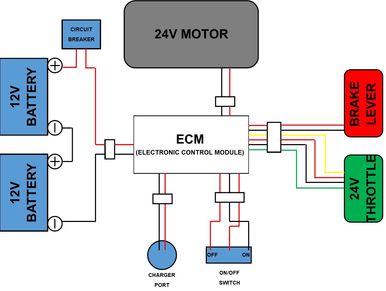

50 Series Wiring Diagram A

A circuit diagram with motor and batteries

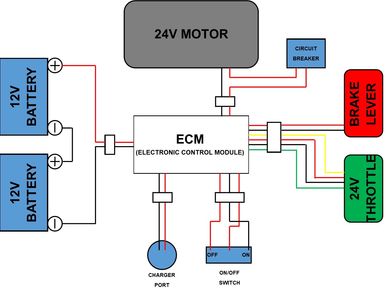

50 Series Wiring Diagram B

A controller with two batteries

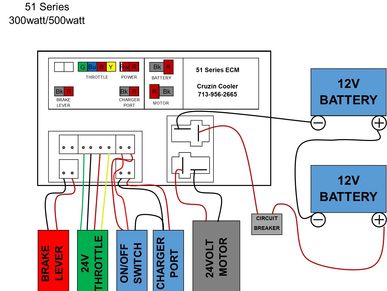

51 Series 300/500watt 24V Wire Diagram

An electric controller with three batteries

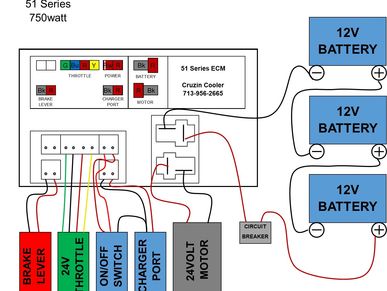

51 Series 750watt 36volt Wire Diagram

A red color Vespa scooter parked at the showroom

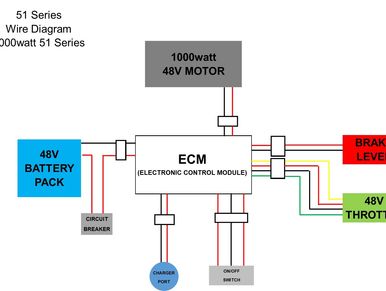

51 Series 1000watt 48V Wiring Diagram

Vehicles moving on the cable bridge

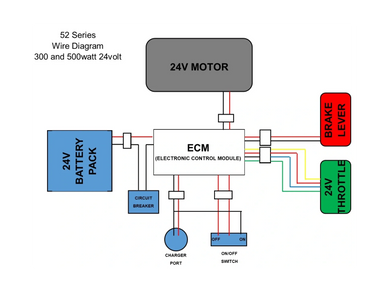

52 Series 300watt and 500Watt 24V Wire Diagram

An ECM Module with a battery pack and circuit breaker

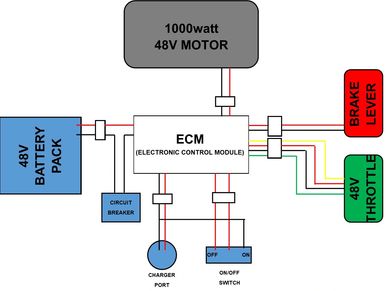

52 Series 1000watt Wire Diagram

An ECM with throttle and brake lever

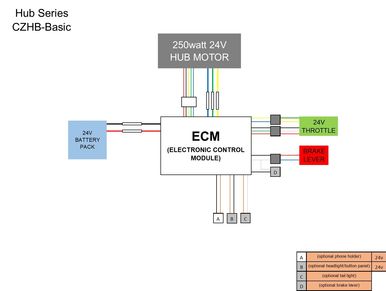

Hub Series CZHB Basic

An ECM with battery pack and key switch

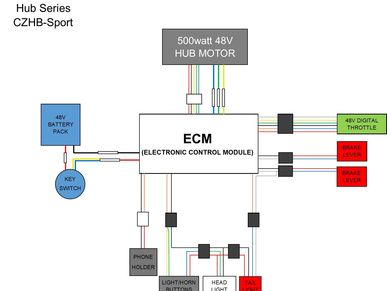

Hub Series CZHB Sport

An ECM with phone holder, head, and tail lights

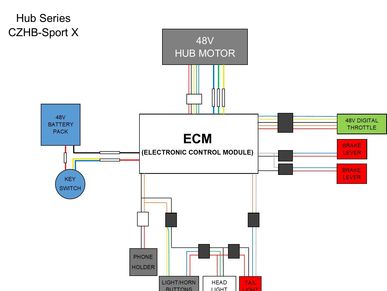

Hub Series CZHB Sport X
